Develop a Slack-bot using Golang

Learn how to build a Slack bot in Go with this step-by-step tutorial

Slack is a communication tool used by developers and companies to share information and communicate. It has grown very popular in recent years.

In this article, we will cover how to set up and build a bot that can interact with the Slack workspace and channels. We will look into how to create slash commands and visualized requests such as buttons. The bot application will be sending requests to a Go backend via Websocket, something called Socket-Mode in the slack world.

Create the Slack workspace

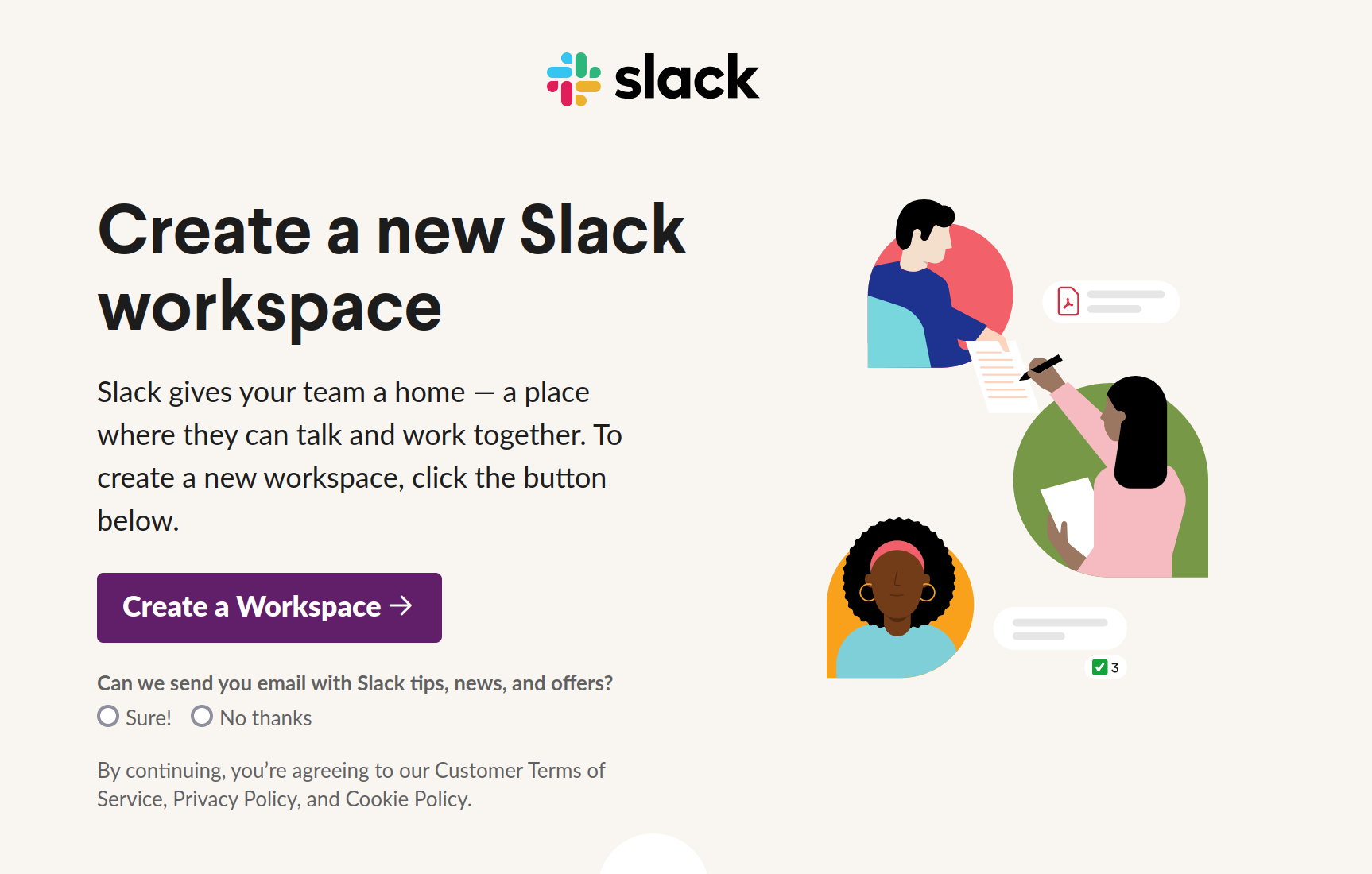

If you don't alread y have a workspace to use, make sure to create a new one by visiting slack and press Create a new Workspace.

Go ahead and fill all the forms, you will need to provide a name for the team or company, a new channel name, and eventually invite other teammates.

Creating the Slack Application

The first thing we need to do is to create the Slack application. Visit the slack website to create the application. Select the From scratch option.

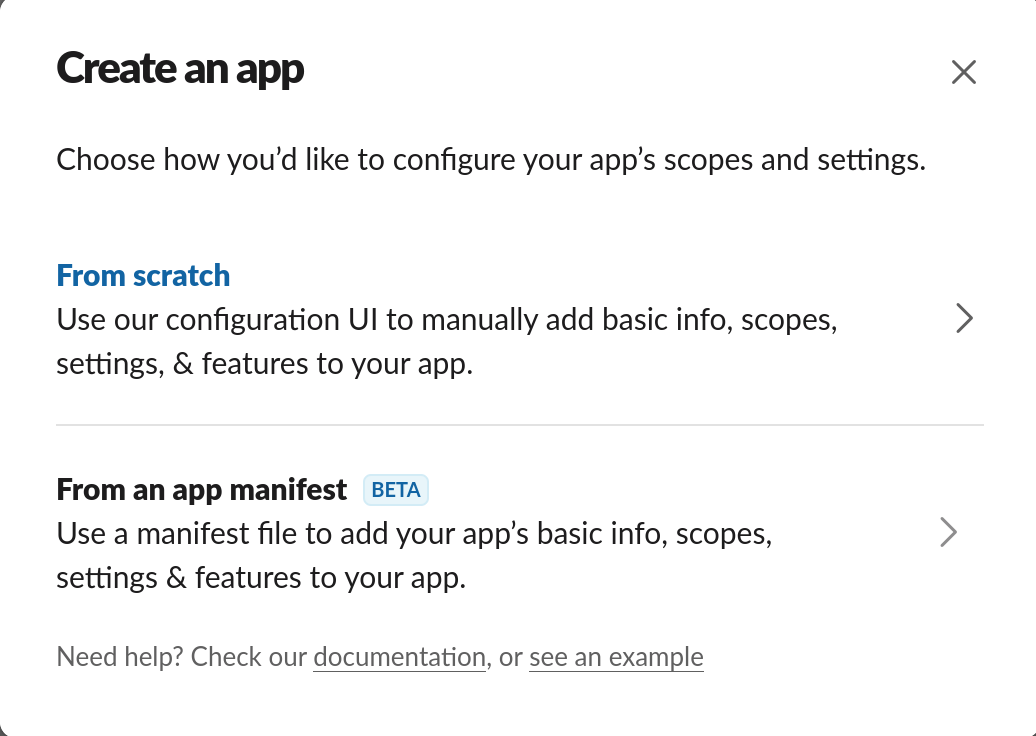

Slack — Create a new Application for our Bot

You will be presented with the option to add a Name to the application and the Workspace to allow the application to be used. You should be able to see all workspaces that you are connected to. Select the appropriate workspace.

There are many different use cases for an Application. You will be asked to select what features to add, we will create a bot so select the Bot option.

Slack — Features / Functions to add to the application

After clicking Bots you will be redirected to a Help information page, select the option to add scopes. The first thing we need to add to the application is the actual permissions to perform anything.

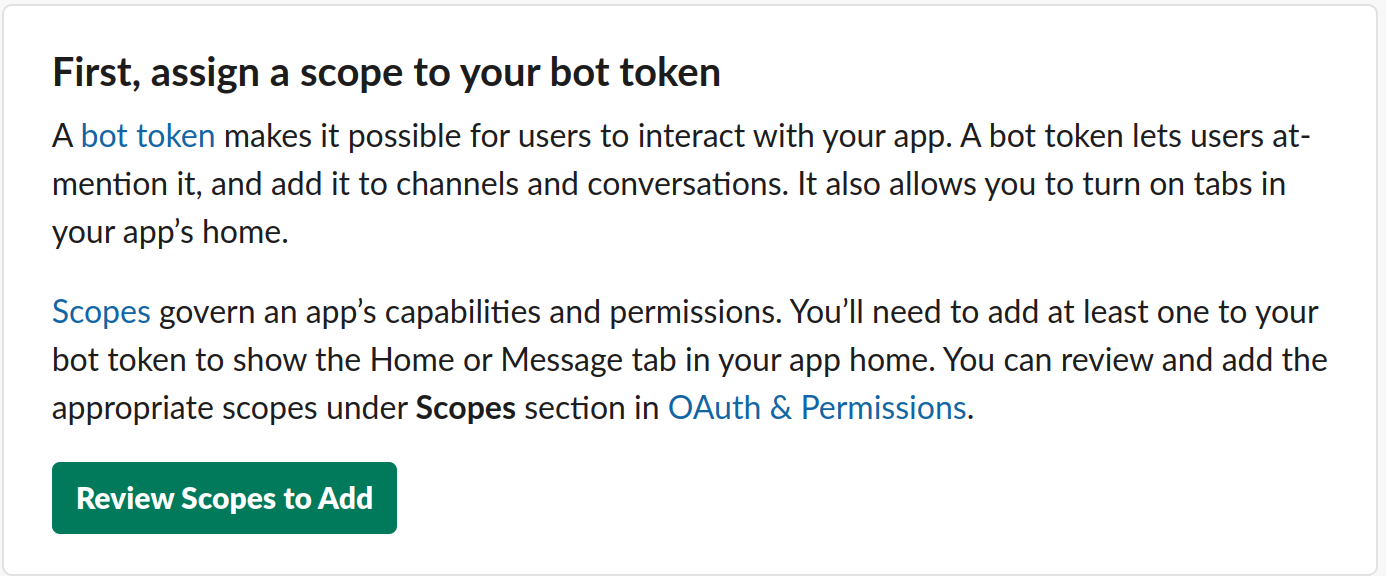

Slack — Add scopes to allow the Bot to perform actions

After pressing Review Scopes to Add, scroll down to Bot scopes and start adding the 4 scopes I've added. The explanation of the scopes is present in the image.

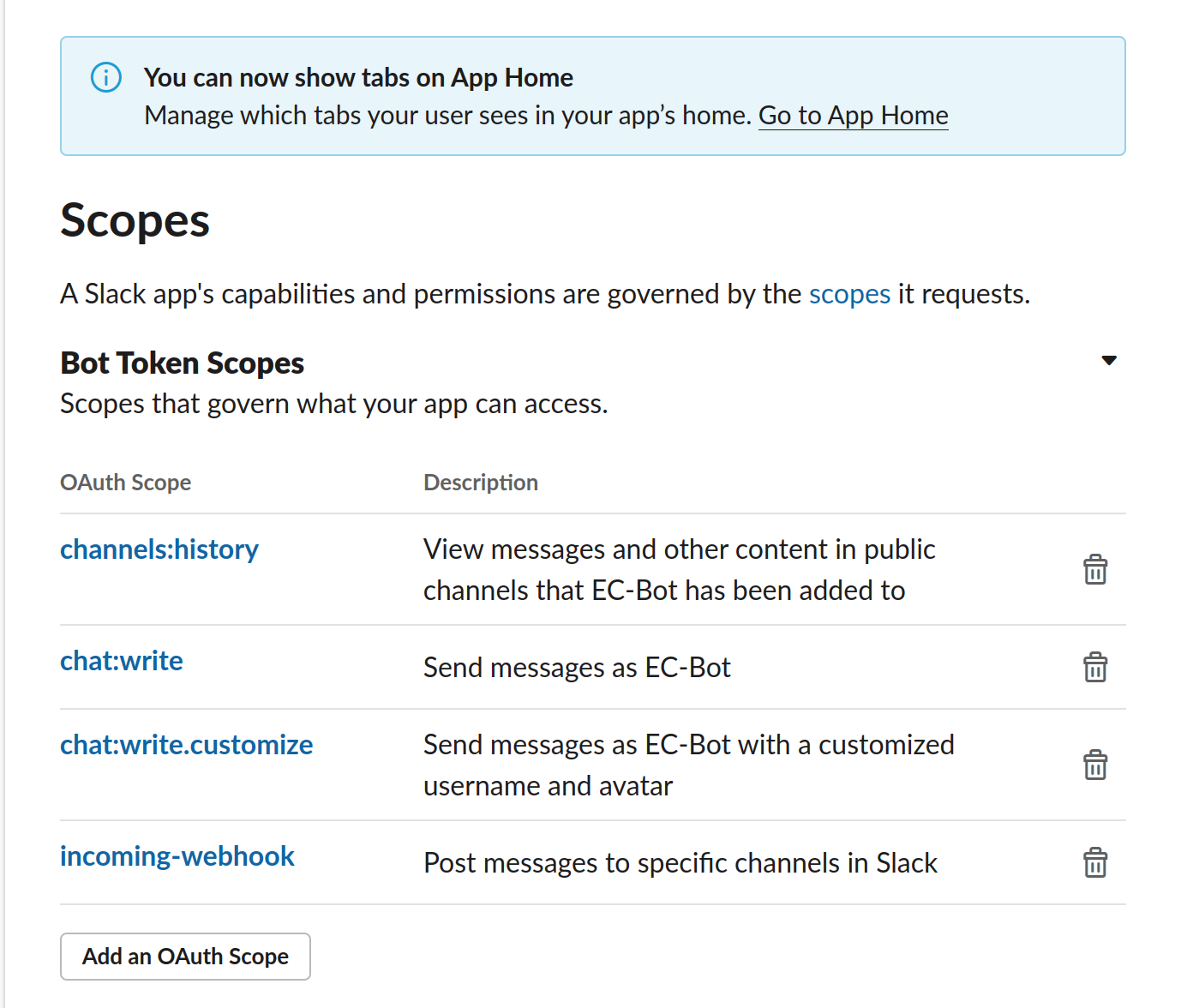

Slack — Adding bot permissions to scan channel and post messages

After adding the scopes we are ready to install the application. If you're the owner of the application you can simply install it, otherwise, like in my case, I have to request permission from an Admin.

Slack — Request or Install application to workspace

If you can Install or are allowed to install you will see yet another screen with information, select the appropriate channels the bot can use to post on as an application.

SlackBot — Installing the bot to the workspace

Once you click Allow you will see long strings, one OAuth token, and one Webhook URL. Remember the location of these, or save them on another safe storage.

Open your slack client and log in to the workspace. We need to invite the Application into a channel that we want him to be available in. I've used a channel named percybot.
Go there and start typing a command message which is done by starting the message with /. We can invite the bot by typing /invite @NameOfYourbot.

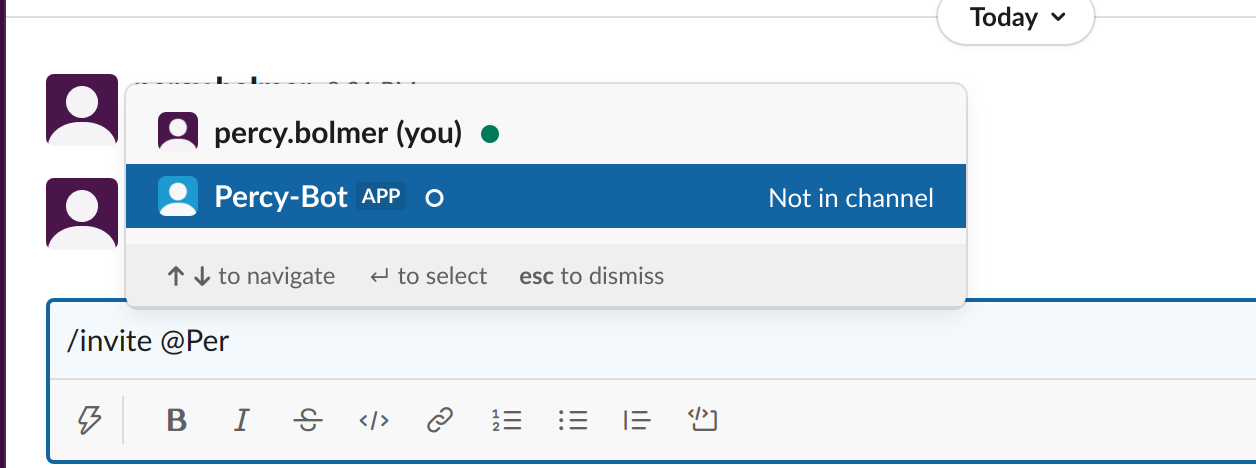

Slack — Invite the bot to the Channel where it can be used.

Connecting to Slack from Golang

Now that we have the Slack application up and the authentication token we can start communicating with the Slack channel.

We will be using go-slack which is a library that supports the regular REST API, WebSockets, RTM, and Events. We will also use godotenv to read environment variables.

Let's create a new golang package and download it.

            mkdir slack-bot
cd slack-bot
go mod init programmingpercy/slack-bot
go get -u github.com/slack-go/slack
go get -u github.com/joho/godotenv

First of all, we will create a.env file that can be used to store your secret token. We will also store a channel ID here. You can find the Token in the web UI where you created the application, the channel can be found in the UI if you select the channel and go to Get channel details by pressing the carrot arrow.

Slack — Press the yellow circled item to find the Channel ID.

.env — The secrets that we will use in the bot

Create main.go so we can start coding. We will begin by simply connecting to the workspace and posting a simple message to make sure everything is working.

We will use godotenv to read in the.env file. Then create a Slack Attachment, which is a message that is sent to the channel. What's important to understand is that the Slack package leverages a pattern where most functions take a Configuration slice. What this means is that there are Option functions that can be added in each request, and a variable amount.

We will also add some Fields to the message which can be used to send extra contextual data.

main.go — Sending a simple Message on a slack channel

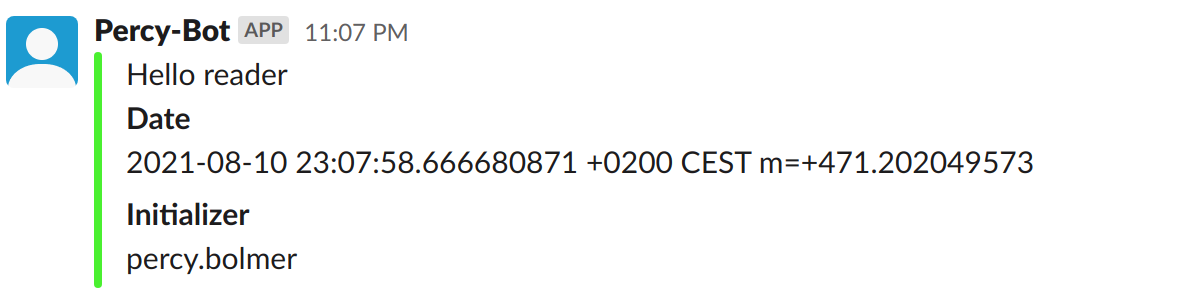

Execute the program by running the main function, you should then see a new message in the slack channel.

            go run main.go

Using the Slack Events API

The slack events API is a way to handle events that occur in the Slack channels. There are many events, but for our bot, we want to listen to the mentions event. This means that whenever somebody mentions the bot it will receive an Event to trigger on. The events are delivered via WebSocket.

You can find all the event types available in the documentation.

The first thing you need to do is attend your Application in the web UI.

We will activate something called Socket Mode, this allows the bot to connect via WebSocket. The alternative is to have the bot host a public endpoint, but then you need a domain to host on.

Slack — Enable Socket Mode to allow Websocket instead of HTTP

Then we also need to add Event Subscriptions. You can find it in the Features tab, enter it, and activate it. Then add the app_mentions scope to the Event subscriptions. This will make mentions trigger a new event to the application

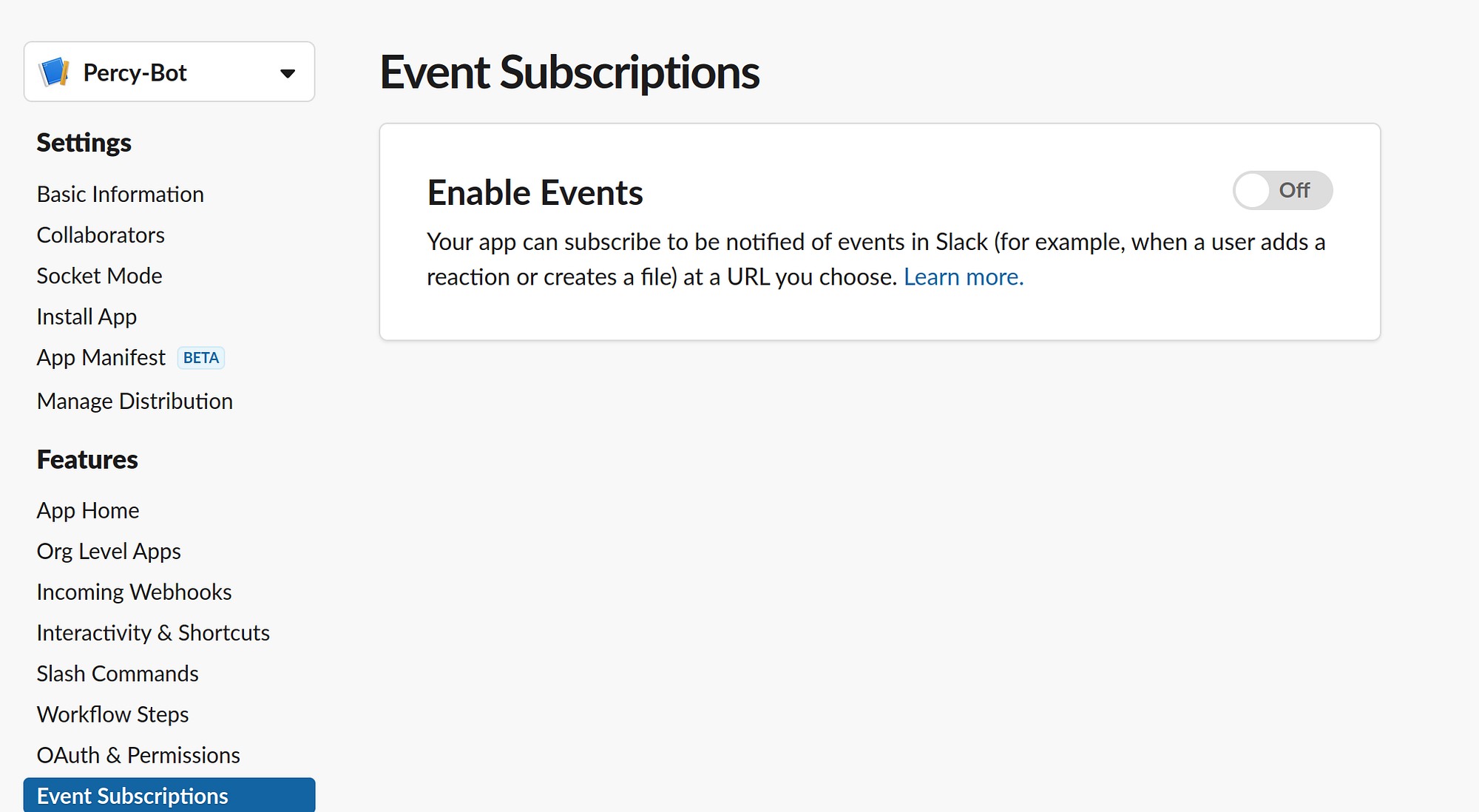

Slack — Enable Event subscriptions for the application

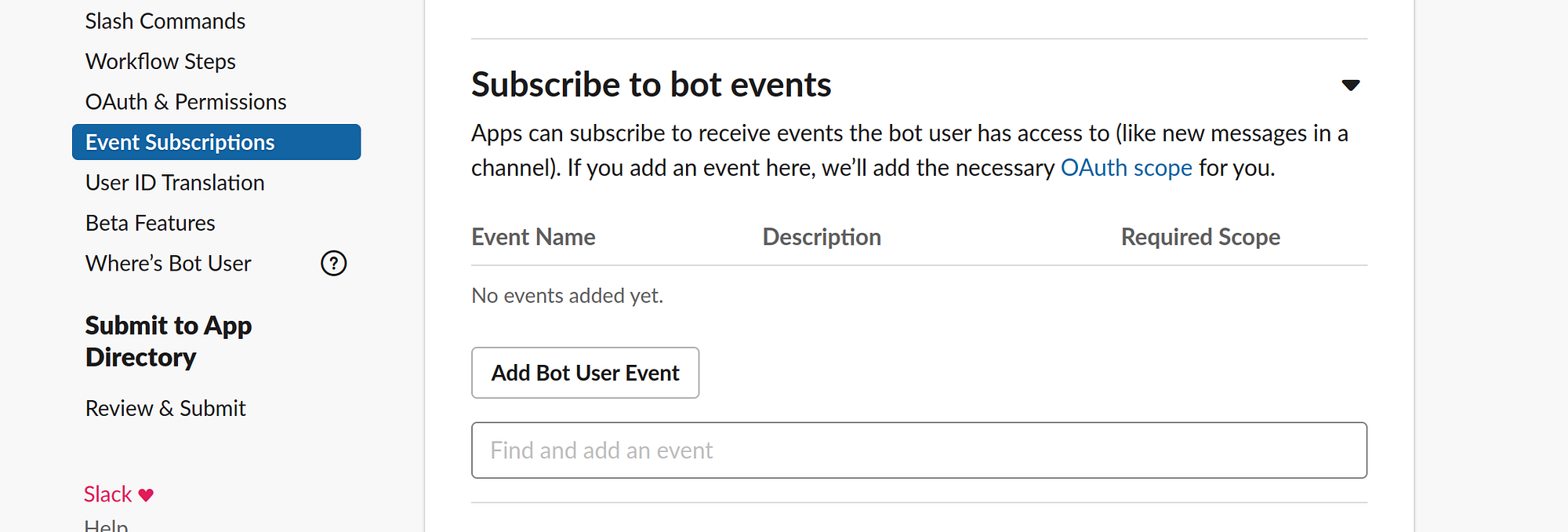

Slack — Make sure to subscribe to the correct event, app_mentions

The final thing we need to do is generate an Application token. Right now we only have a Bot token, but for the Events, we need an Application token.

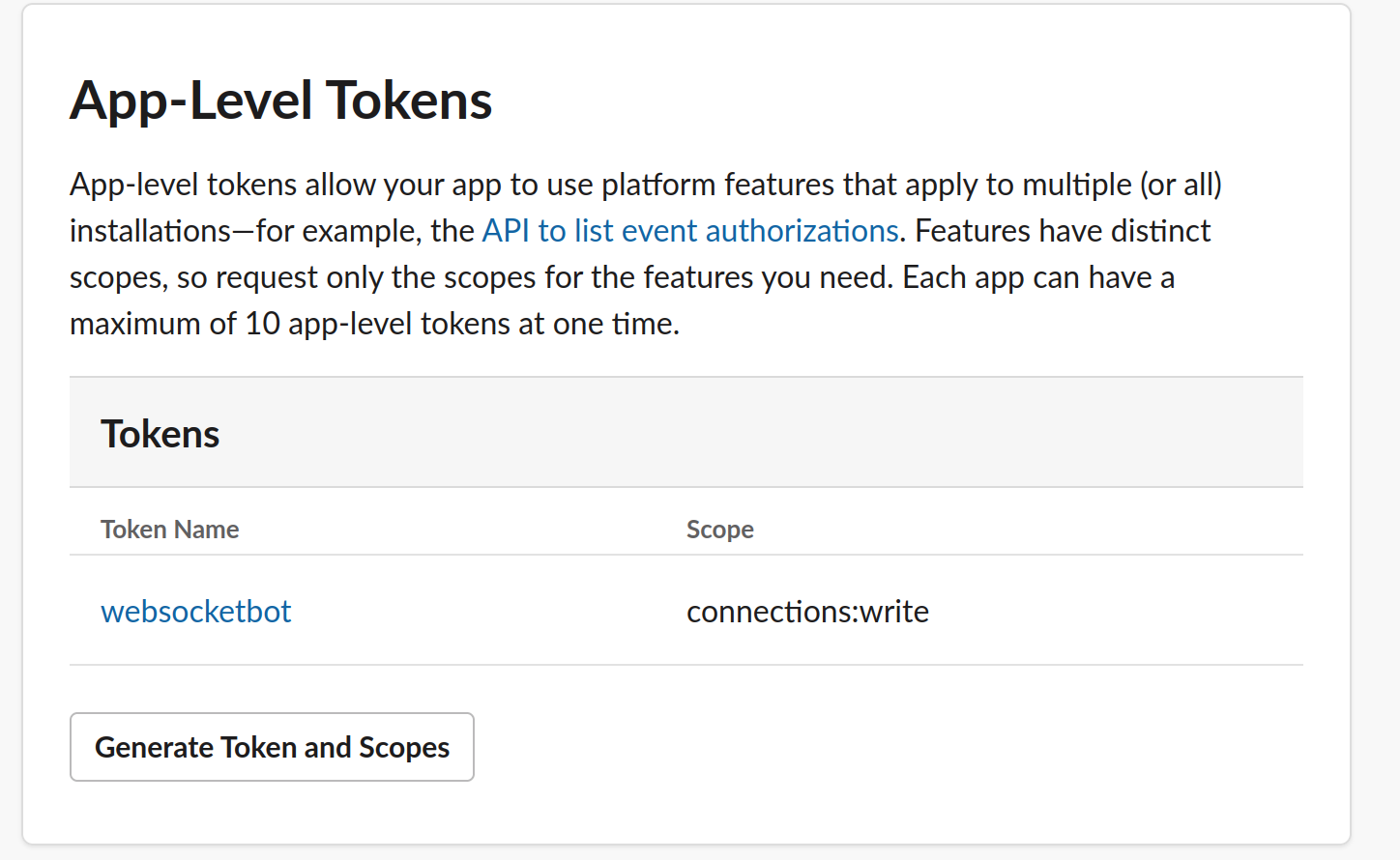

Go into Settings->Basic Information and scroll down to the chapter called App-Level Tokens and press Generate Tokens and Scope and fill in a name for your Token.

I've added the connections:write scope to that token, make sure you save the Token as well by adding it to the.env file as SLACK_APP_TOKEN.

.env — Add all necessary fields to the .env

To use Socket Mode we also need to get a sub package of slack-go which is called socket mode.

            go get github.com/slack-go/slack/socketmode

The slack package will need to create a new Client for the socket mode, so we will have two clients. One that uses the regular API and one for the websocket events. Let's begin by connecting to make sure all permissions are correct. Notice how the Websocket client is created by calling socketmode.New and given the regular client as input. I've also added a OptionAppLevelToken to the creation of the regular client since that is now needed to connect to the Socket.

main.go — Creating a Bot that is connected to the EventsAPI via Socketmode

Make sure to run the program and verify the output that is connected, there will be a ping hello sent.

main.go — Output from running the program

It's time to start selecting all events to listen for. At the end of the program, we call socketClient.Run() which will be blocking and ingesting new Websocket messages on a channel at socketClient.Events. So we can use a for loop to continuously wait for new events, also the slack-go library comes with predefined Event types, so we can use a type switch to handle different types of Events easily. All events can be found here.

Since socketClient.Run() is blocking, we will spawn a goroutine that handles incoming messages in the background.

We will begin by simply logging in whenever an Event on the EventAPI is triggered in Slack. Since we first need to type switch the message on the websocket if it's an EventsAPI type, then switch again based on the actual Event that occurred we will break the Event handling out into a separate function to avoid deeply nested switches.

main.go — We now listen for any events and print them out

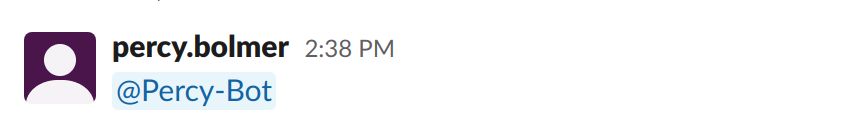

If you want to test it, run the program and then enter Slack and mention by bot by using @yourbotname.

            go run main.go

You should be able to see the Event being logged in the command line running the bot.

main.go — The output of the event log

Look at the Event printed and you will understand why we need to use multiple type switches. The event we get is of the type event_callback, and that event contains a payload with the actual event that was performed.

So first we need to test if it's a Callback event and then if it's an app_mention payload event.

Let's implement the handleEventMessage that will continue the type switching. We can use the type field to know how to handle the Event. Then we can reach the payload event by using the InnerEvent field.

handleEventMessagev1 — Function to handle the callback event and see if it's an AppMentionEvent

Replace the previous log in the main function that printed the event with the new handleEventMessage function instead.

Main.go — Use handleEventMessage instead of nesting type switches

Now logging the event does not make a fun bot. We should make the bot respond to the user who mentioned him and if they said hello it should also greet them.

Begin by logging into the application and adding the users:read scope to the bot token. I trust you to make that without guidance now, or go back and read how we did before.

Once that's done we will create the handleAppMentionEvent function. This function will take a *slackevents.AppMentionEvent and a slack.Client as input so it can respond.
The event does contain the user ID in the event.User so we can use that ID to grab user information. The channel to respond to is also available in the event.Channel. The final piece of information we need is the actual message the user sent when mentioning, which is found in the event.Text.

handleAppMentionEvent — The handler for mentions in the bot

To begin using this function we need to add the Client as an input parameter as well. So we have to update handleEventMessage to accept it.

handleEventMessage — Now accepting the client as input parameter

Restart the program and try saying Hello and also saying something else to see that it works as expected. If you get a "missing_scope" error you have missed some scope.

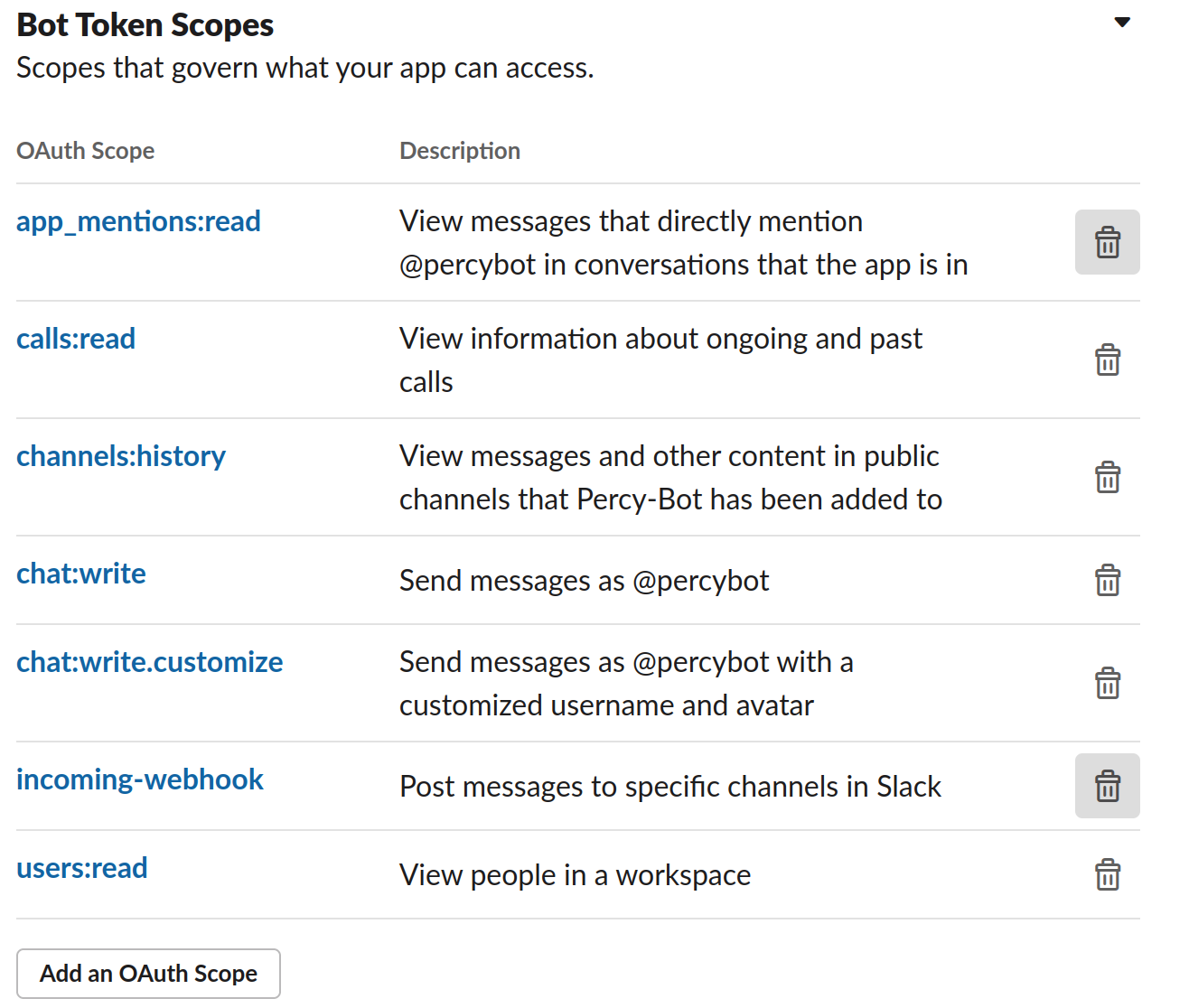

All scopes currently needed to make to bot run

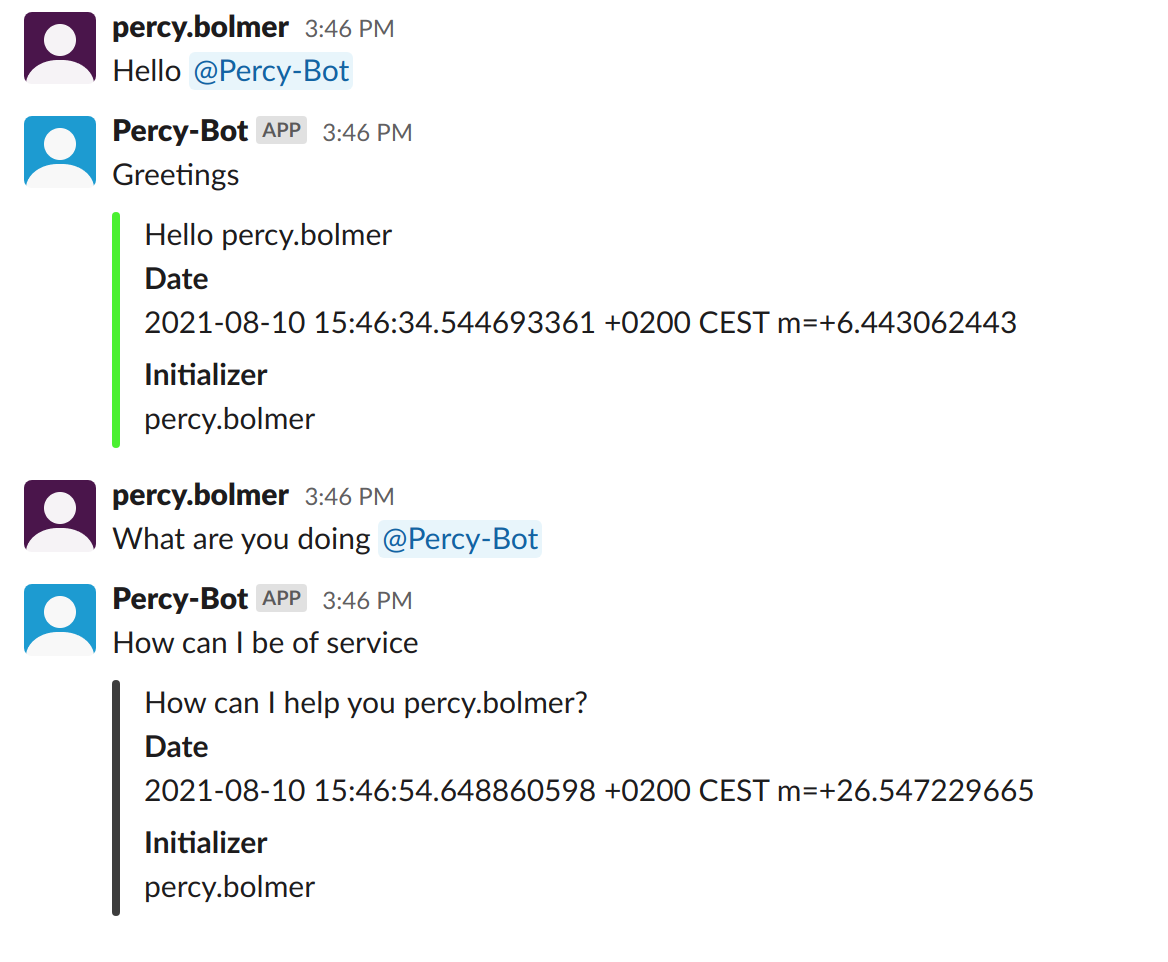

Here is the output of my currently running bot

It's time to move forward and looking at how to add Slash commands.

Adding slash commands to the Slack bot

Most commonly I've seen slash commands being used by Slack bots. What this means is you can type /send a special command. There are many built-in commands such as /call which allows you to start a call etc.

We will be adding a custom command which will be /hello. When this command is triggered we will make the bot send a greetings message.

Again, you need to add the command in the web UI. Visit the website and select the Slash Command in the features tab.

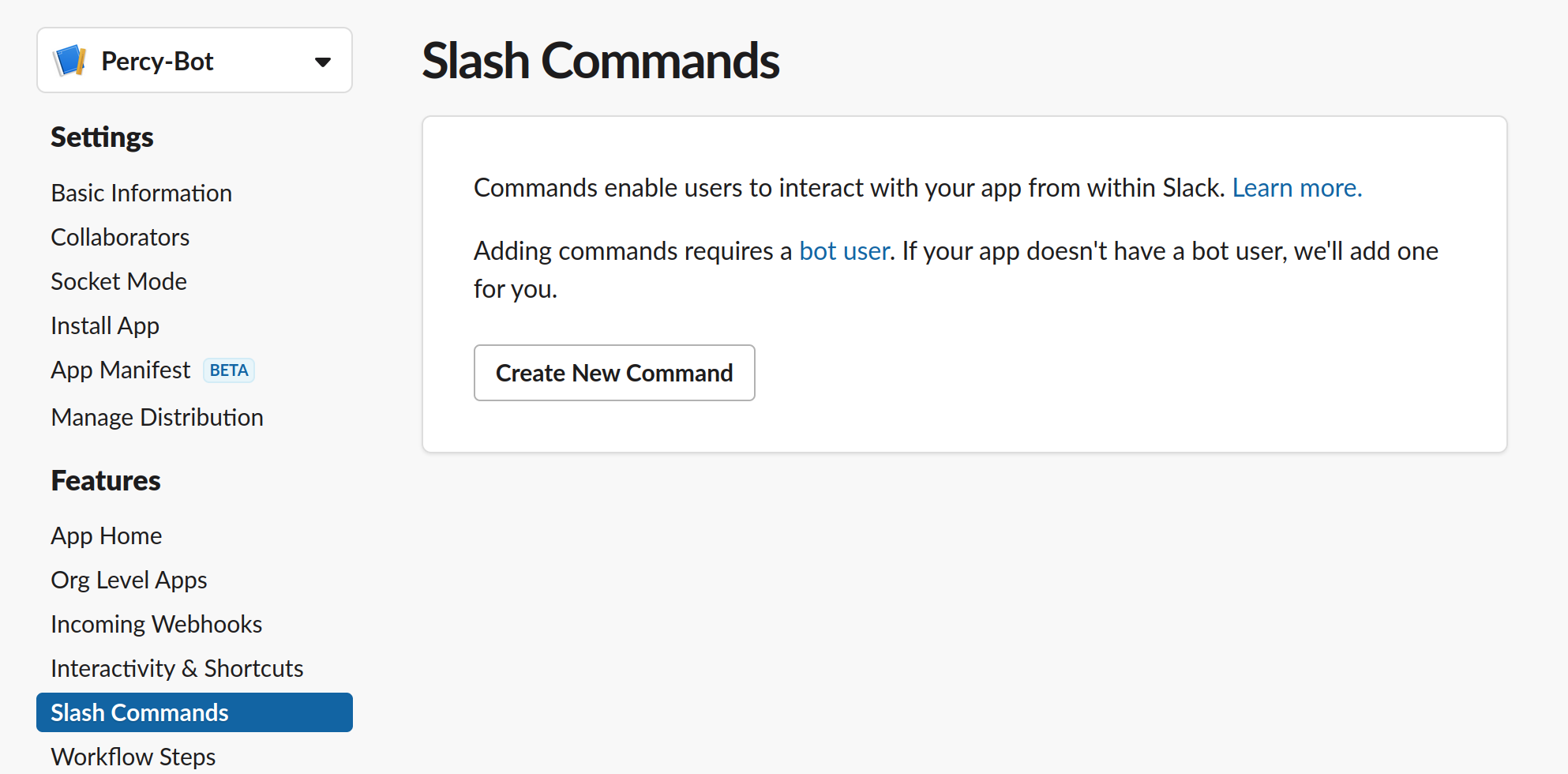

Slack — Add a new Slash command in the UI.

We will make a command that accepts a single parameter which is the username to greet.

Fill in the fields asked for, note that we are using socket-mode so we don't need to provide a request URL.

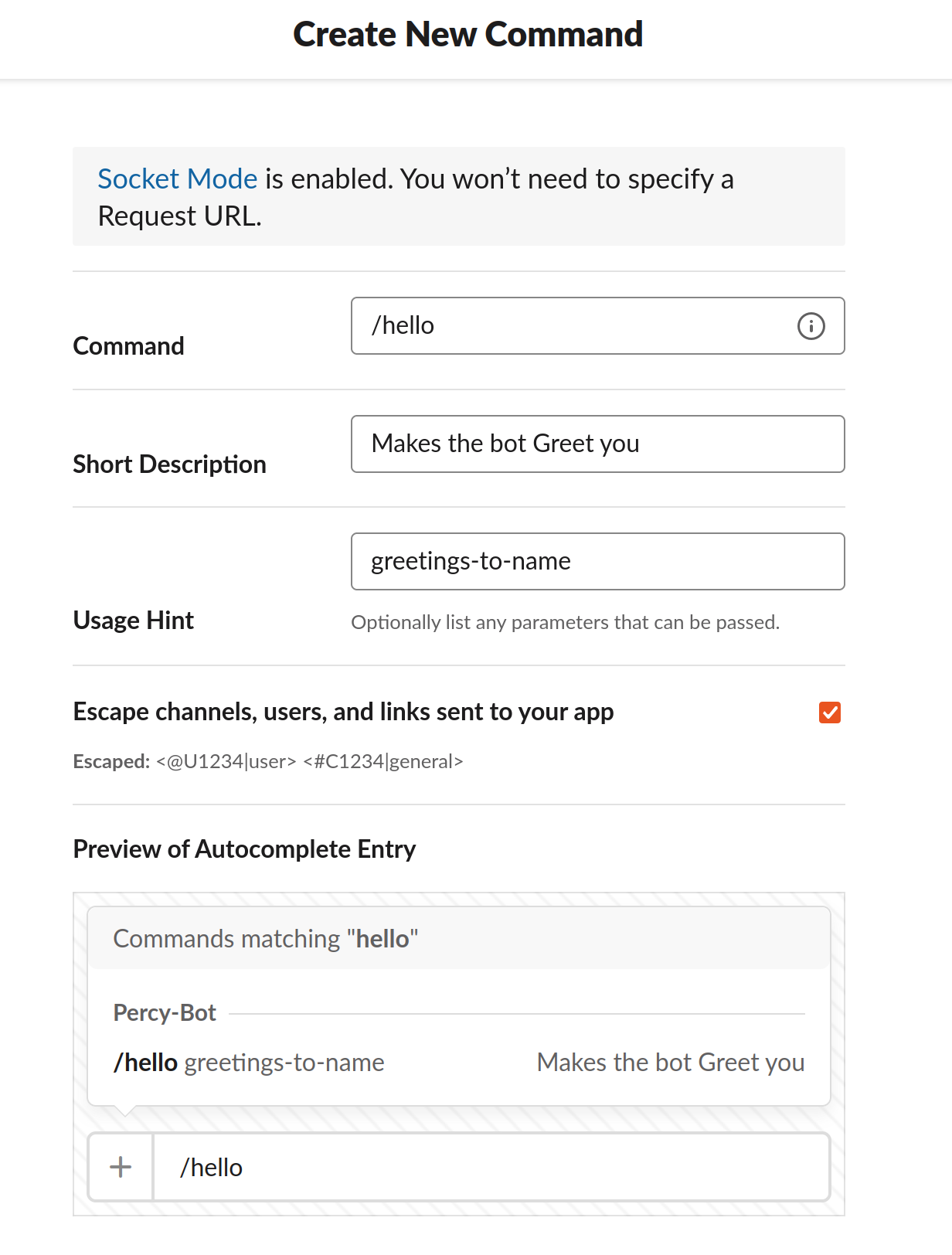

Slack — Adding a new slash command to hello usernames

Don't forget to reinstall the application after we have added the command. This is needed since we have changed the application. If you have forgotten how then revisit the earlier part of the article where we installed the application.

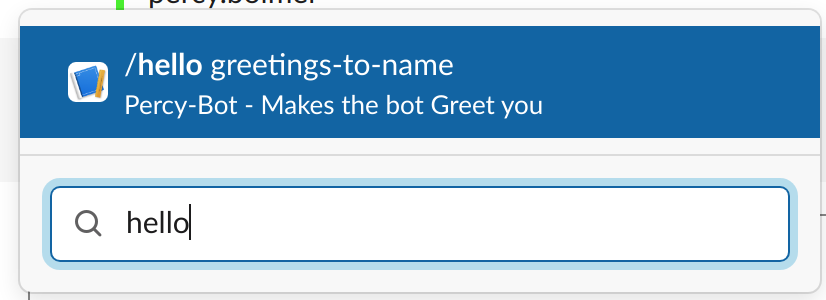

You can verify that everything has been installed by opening up the slack and the channel where the application is invited and type the /hello command.

That was easy enough, let's also redo what we did with the EventsAPI, but this time we will add a type switch for EventTypeSlashCommand.

We will find the command called in the SlashCommand.Command and the input text in SlashCommand.Text. So we will first route the command based on the input of the command and then return greetings to the text field.

Begin by updating the main.go file to include the listener for the new type of message events on the websocket.

Main.go — Added a case for EventTypeSlashCommand messages.

Do not forget to send the Acknowledgement, or else you will see an error message in slack that the message was not dispatched properly.

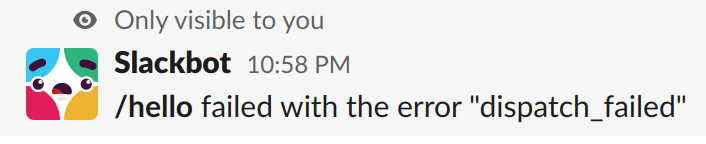

Slack — If you forget to acknowledge the retrieval of the websocket message

We will have a router function called handleSlashCommand which will simply redirect to another function. This might seem overkill for now, but if you plan to add more functions it's easier to make multiple small functions. Especially if you are using unit tests.

The actual response will come from handleHelloCommand which will simply take the username set after the /hello command and send a greeting in the channel.

handleSlashCommand — Router function that reroutes /hello to the correct function

Restart the program and try sending a command from the slack client. When I input /hello reader I see the following output.

Advance slash commands and interactions

We will look at how we can implement a slash command which triggers the bot to ask a question that we can answer with a Yes and No button.

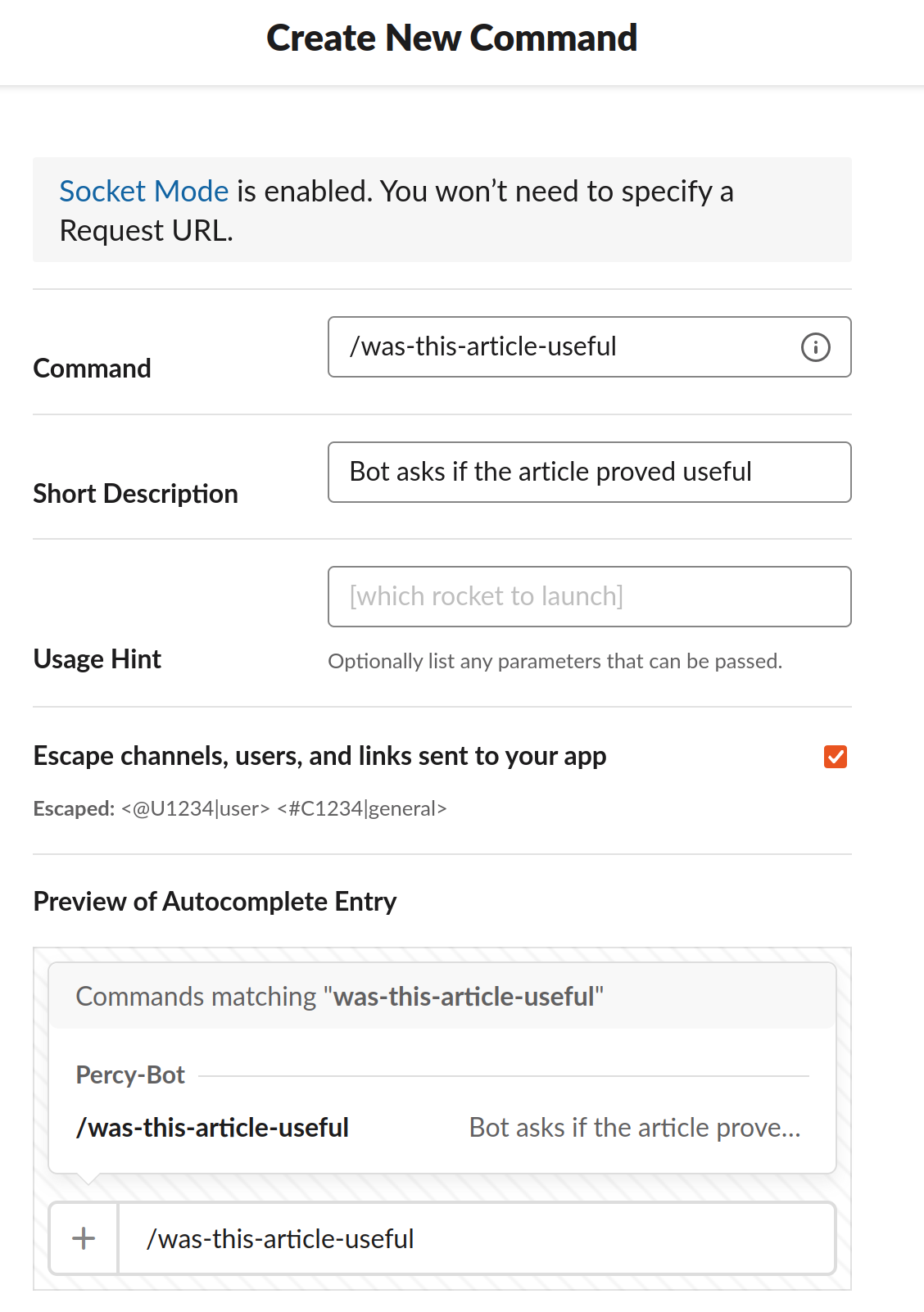

Begin by adding the new command in the Slack web UI so we can trigger it.

We will make a small change to the main function first, In the type switch that accepts the Slash commands events, we currently acknowledge before we process the message. We will change this and return the response in the Acknowledge since this is possible.

main.go — Update the type switch where we accept Slash commands

Now you will see how easily we can add new commands, all we need to do is add a new case option in handleSlashCommand to check for. Of course, we need to handle the actual command as well, but the structure is easily scaled. We will update handleSlashCommand so that it returns an interface{} also. This is the payload response that will be included in the acknowledgment.

handleSlashCommand — We now route both slash commands to their appropriate handler

We will route to a function called handleIsArticleGood that will trigger a two-button questionnaire to the user using something called Block-Kit. It's a Slack implementation that allows us to send HTML components. There are a ton of options and components to send, but let's stick to buttons for now.

The blocks are added to the slack.Attachment that we used previously to send simple messages. It has a field called Blocks which accepts an array of blocks to send. Each block is a visual component to send.

We will be using a Section block, and the Slack library helps us create one using the NewSectionBlock() which will accept a few parameters.

The first parameter is a slack.TextBlockObject which is a standard way of sending text contains the type to use, in which we will use markdown. It also contains the value to display in the text block.

The second parameter is fields to add, such as we used before to add contextual data, let's leave it as nil.

The third parameter is a slack.Accessory which a container for a block element, you can find the JSON layout in the slack documentation. We will add a Checkbox element to the Accessory, which contains two options, [Yes, No]. Remember that we simply return the response, in this case, we don't send it as in the hello handler. Notice the answer in the CheckBoxGroupsBlockElement, this is the action that is used to identify what kind of interaction was performed.

handleIsArticleGood — The handler that builds our visual response that is sent in the acknowledgement

Restart your bot and try executing the command in slack.

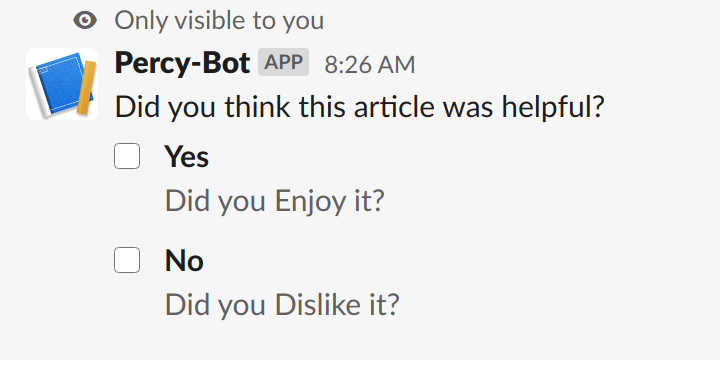

Slack — Response from the /was-this-article-useful command

When you select something nothing will happen since we don't accept the response in the backend yet. The response is will trigger an InteractionEvent, so if we want to accept the response we need to listen for this event in the main function.

The process is the same as before, typecast into the correct message type. In this case, it's an InteractionCallback.

main.go — Adding support for interactions

We will add a handleInteractionEvent that will simply print information about the interaction and the selected option.

handleInteractionEvent — Printing the information of the interaction

Try executing the command, and select an option.

Output from the interaction when pressing Yes/No

Conclusion

We have covered most of the items needed to get started with building your bot.

We have covered these topics

How to set up a Slack-Bot application
Connecting to the application from a Golang service
Listening for bot mentions in a channel
Adding slash commands to the bot
Using the Slack Events API
Sending visualized blocks to Slack
Listening for User interactions

This is it for this time, hopefully you have enjoyed the article. As always feel free to reach out and give me feedback or questions.

Now go out there and build some bots!
